Using a Windows OS computer & Wireless router to find IP address

  1. NIGHTWAVE DIGITAL implements UPNP. UPNP is a discovery protocol that Windows uses to discover devices connected in the networks (e.g. printers).
  2. Depending on your computer setup, you may be required to activate and accept the “discovery mode” for that network interface.
  3. Sometimes there is a popup window asking the user to activate the discovery, if that happens, select “YES.” Otherwise, the UPNP discovery won’t work.
  1. Make sure that the camera has a solid red LED.

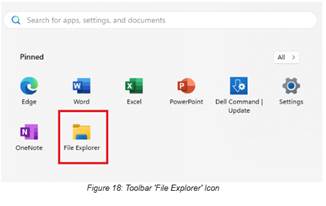

  2. Use your File Explorer to discover the camera (see Figure 18 for reference).

Graphical user interface, application

AI-generated content may be incorrect.

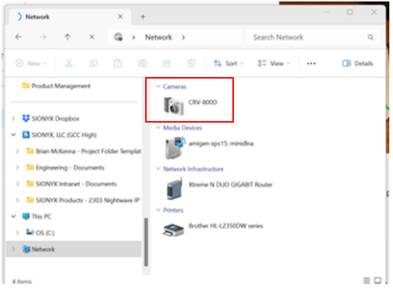

  1. Once the camera has booted and the camera has a solid red LED, the icon "CRV-800D" will appear in the “Network” section of Windows file explorer.

Graphical user interface, text, application

AI-generated content may be incorrect.

  1. If this icon doesn’t appear:  Check the “Network” section of the windows file explorer. Check the network interface where the camera is connected has the “discovery on.”
  1. Right click on the “CRV-800D” device and select “Properties” to access the camera information, including the IP address.



If you wish to access the SIONYX settings Tool-panel on the windows laptop:

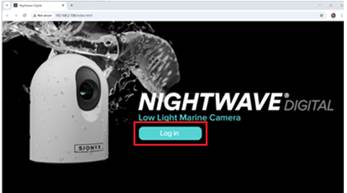

  1. Click on the “Device webpage” link (or double click the "CRV-800D" icon). Then click “Log In”



Graphical user interface

AI-generated content may be incorrect.

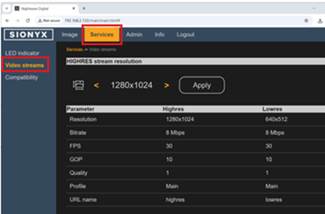

A screenshot of a computer

AI-generated content may be incorrect.





If you wish to see the Live View on a Windows OS laptop using a wireless router:

  1. When connecting using a Windows OS laptop, live video can be watched using an RTSP player (VLC, Potplayer, etc.) Refer to section 10.4 in the User Guide (Here) for more information.
