Nightwave Technical Features and Specs

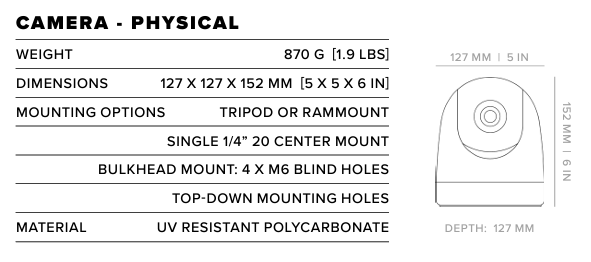

link to Product Specifications

  • <1 milliLux (less than 0.001 Lux) moonless starlight night vision
  • 44° horizontal field of view
  • Rugged and water-resistant (IP67 rated)
  • Connect directly to a any MFD with an analog input
    or wirelessly stream video to a mobile device using the Sionyx mobile app
  • Flexible installation
    • Permanently mount to a flat surface, ball-up or ball-down, using the included mounting template and hardware
    • temporarily mount with a 1/4"-20 mount interface for use with standard mounts
  • 12Vdc power (fused)
  • NTSC Analog video connection (SMA/BNC/RCA)
  • 22° degree manual vertical tilt adjustment for fine tuning view during install
